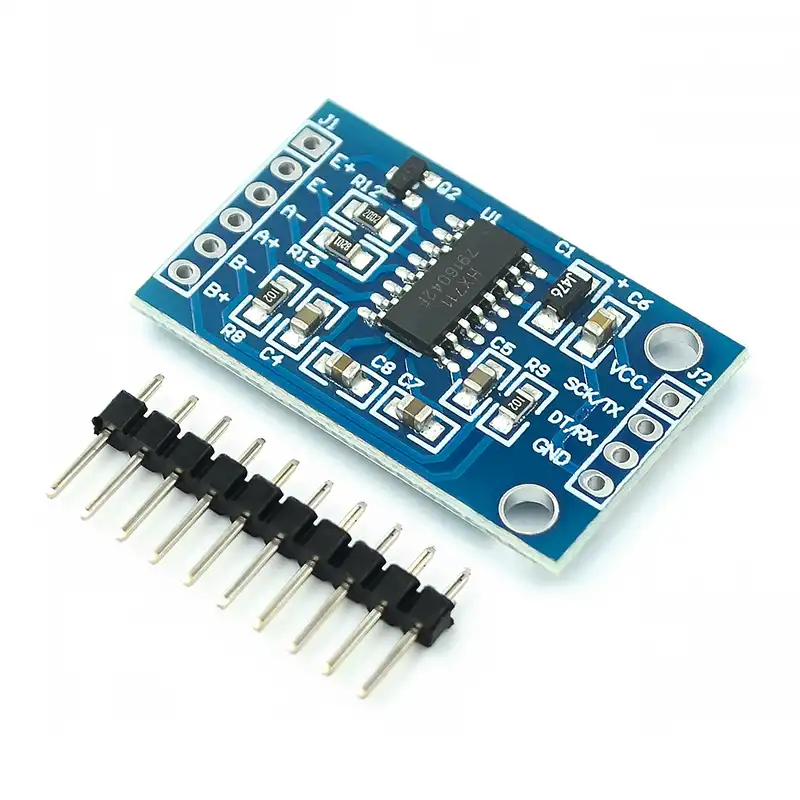

24bit HX711 Load Cell Electronic Scale Weighing Sensor Module

24bit HX711 Load Cell Electronic Scale Weighing Sensor Module

Key Features of the HX711 Serial Port Module:

• Dual-channel design, A and B, each channel offers two selectable operating modes to meet diverse user needs. (For details, see the module user manual, linked above.)
• Default baud rate: 9600 bps
  Parity: None
  Stop bit: 1
  Total protocol length: 10 bytes

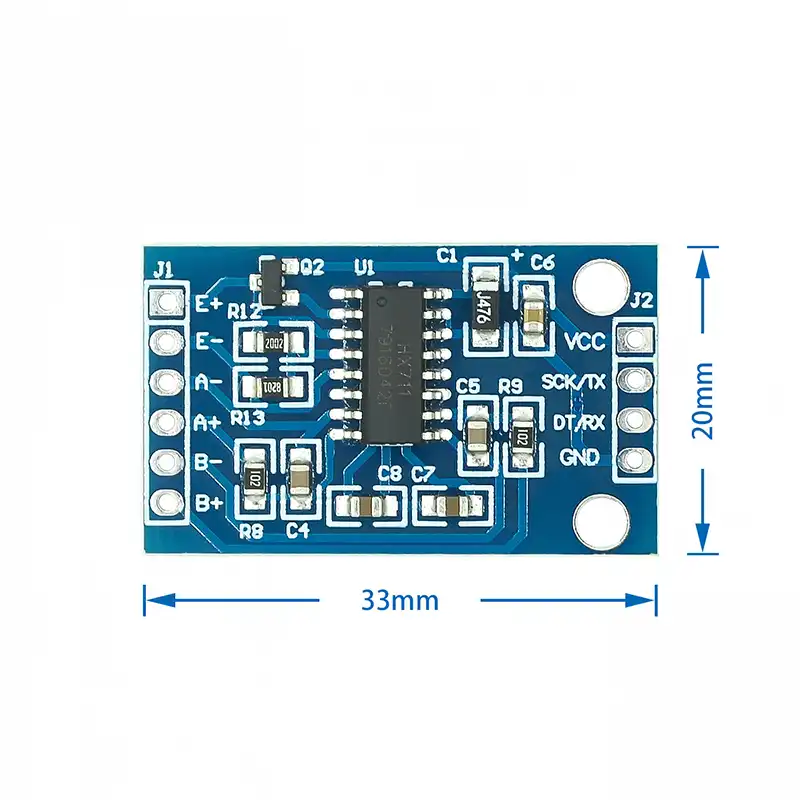

• Dimensions: 3.3 cm long * 2 cm wide * 0.3 cm high
• The new model features a 47 uf black tantalum capacitor, significantly improving stability.
• Built-in microcontroller, with numerous control instructions for tare, calibration, and more, providing powerful functionality and reducing low-level development time.
• The HX711’s on-chip voltage regulator circuit can directly power an external pressure sensor.
• Simple serial communication, including TTL to USB conversion for convenient computer data transmission.
• Simultaneously suppresses 50 Hz and 60 Hz power supply interference.
• Extremely low power consumption, with a typical operating current of 12 mA.
• Operating voltage range: DC 4.7-5.5 V.
• Operating temperature range: -20°C to +85°C

Other sensor module can be viewed here. They can be programmed by arduino. More quantity, contact us to get a quotation.
