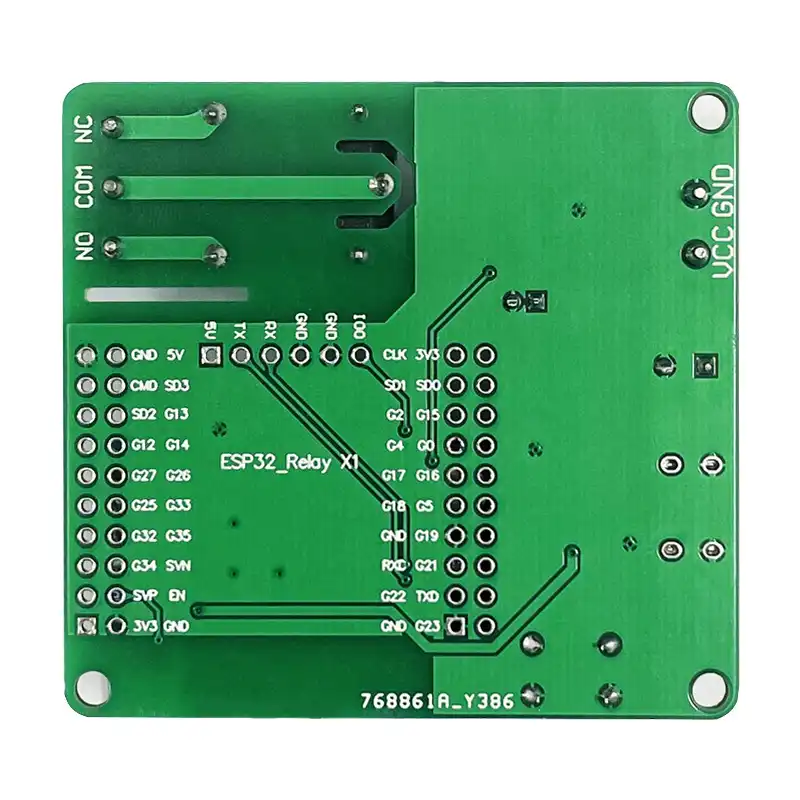

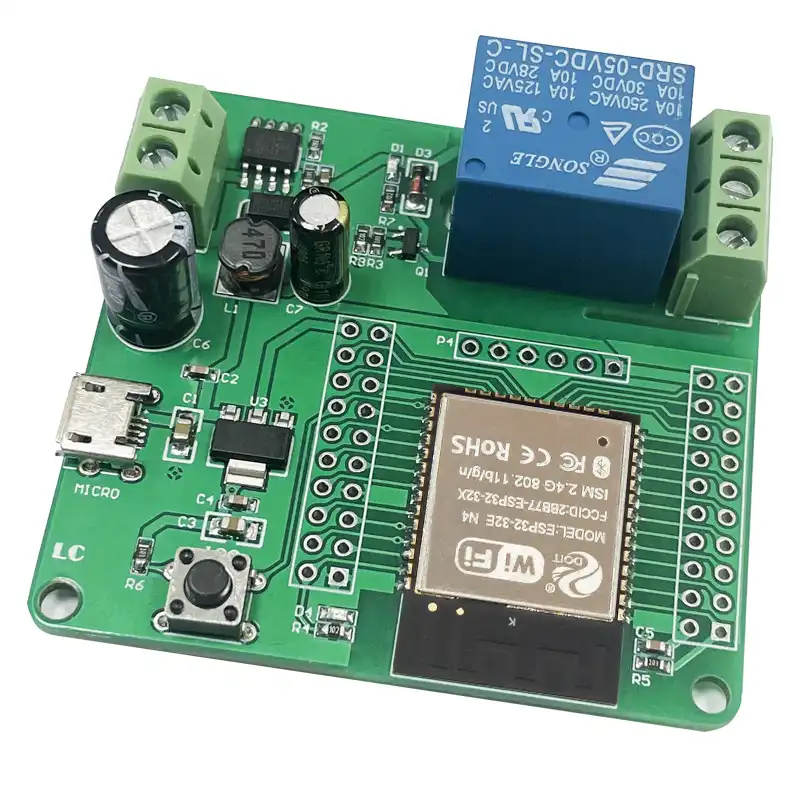

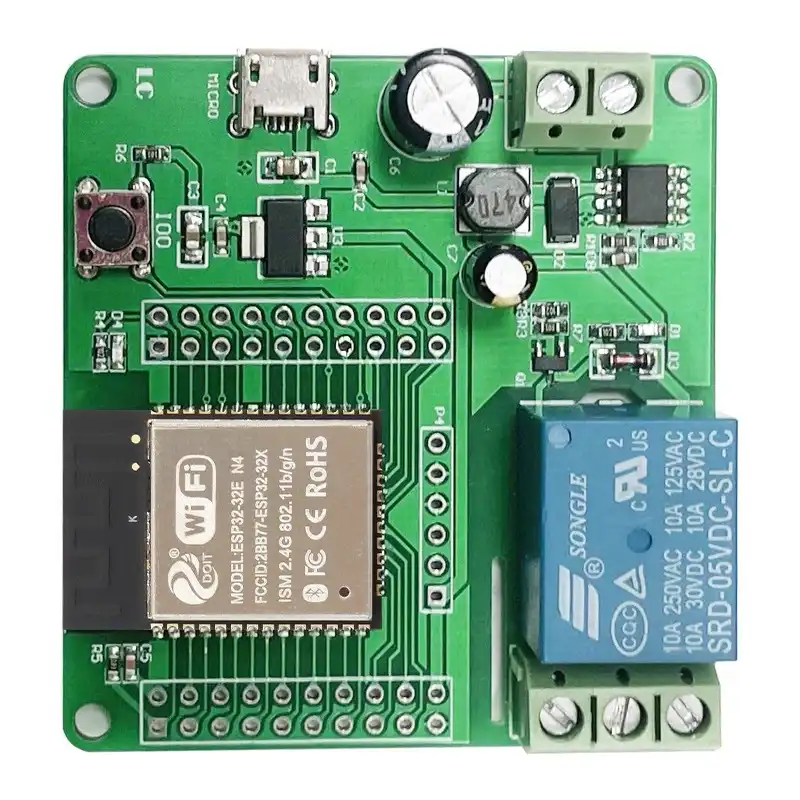

ESP32 with Relay Module

ESP32 with Relay Module

The core wifi module is esp32-32e, it supports 5-60v input. PCB Size:57.5*53.7mm

Key Features:

• Onboard mature and stable ESP-32E module with large-capacity 4MB Flash

• All ESP32 module I/O pins and UART programming interface are fully exposed for easy secondary development

• Board power supply supports 7-60v and micro usb 5v

• Onboard ESP32 module RST reset button and programmable I/O button

• ESP32 supports development using the Arduino IDE, with reference example code provided for the Arduino environment

• Onboard 1-channel 5V relay with switch output signal, suitable for controlling loads up to AC 250V or DC 30V

• Onboard power indicator LED, one programmable LED, and a relay status indicator LED

How to order this relay board?

If you only need single 1 product, usually it also support online order, so you can purchase online via filling the related order information and proceed payment. However, if you interested with more than MOQ online, welcome contact us to get a quotation.

More other relay module can be vied here. Know more about company information.
