3D Printer Motherboard for Arduino Mega R3 CH340 Development Board

3D Printer Motherboard for Arduino Mega R3 CH340 Development Board

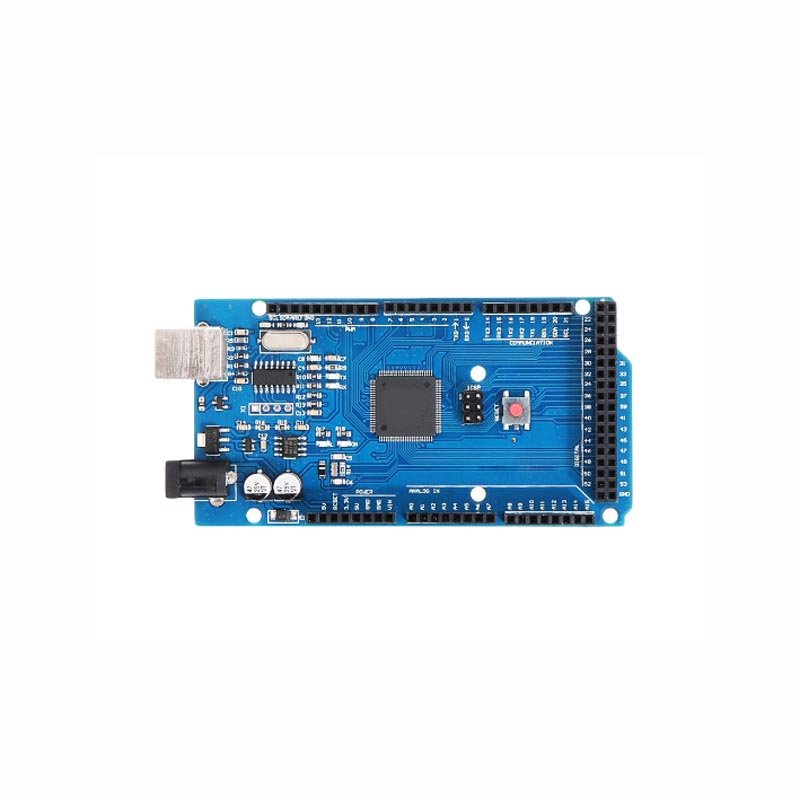

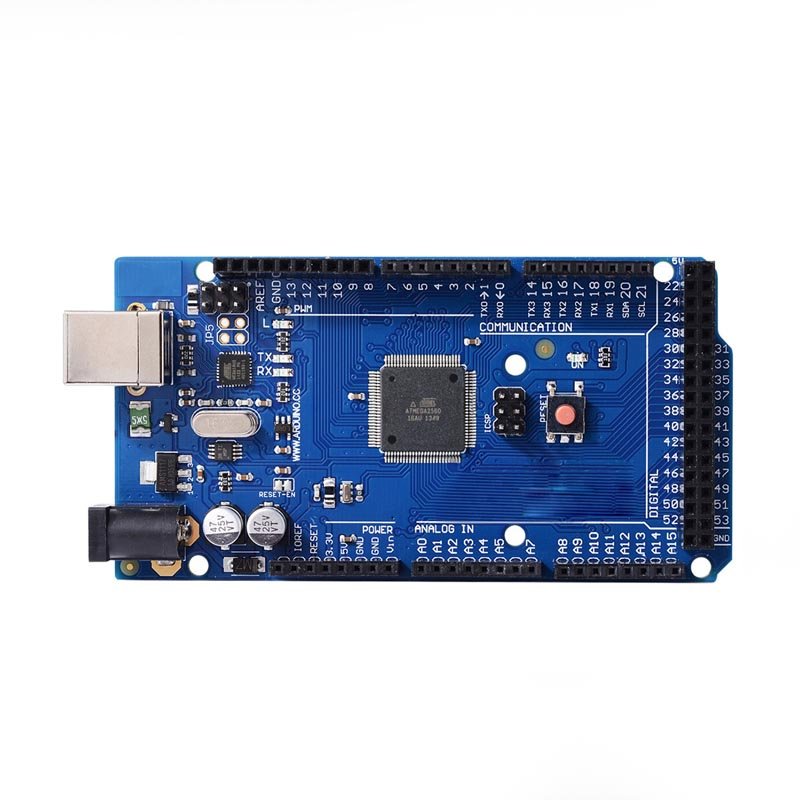

The Mega Development Board can be used as a 3D printer controller board.There is 2 usb driver chip version available,I.E:Official Atmega16u2 chipset and CH340 chipset.Below is the two design picture difference:

Introduction to Arduino Mega and the CH340 Chip

The Arduino Mega is an advanced microcontroller board based on the ATmega2560 chip. It is designed for complex projects that require a higher number of input and output ports compared to its counterparts. With 54 digital input/output pins, 16 analog inputs, and 4 hardware Serial ports, the Arduino Mega offers substantial flexibility and functionality. This makes it particularly suitable for applications in robotics, automation, and even intricate data logging tasks.

One of the standout features of the Arduino Mega is its expansive memory capacity, which includes 256 KB of flash memory and 8 KB of SRAM. Such specifications empower developers and hobbyists to run larger programs and manage more complex tasks without concerns of memory constraints. Additionally, the board supports various shields and extensions, enabling easy integration with sensors and other hardware components.

Integral to the effective functioning of the Arduino Mega is the CH340 chip, which serves as a USB-to-serial converter. This chip plays a crucial role in facilitating communication between the Arduino Mega and a computer, enabling users to upload sketches and utilize the Serial Monitor effectively. Acting as an interface, the CH340 translates USB traffic into serial data that the ATmega2560 can process. This function is vital for programming the board and debugging, simplifying interactions for users.

The CH340 chip’s affordability and reliability have made it a widely adopted choice within the Arduino community. Its presence helps reduce production costs while maintaining the necessary performance levels expected from the Arduino Mega. Common applications utilizing the Arduino Mega with the CH340 include home automation projects, 3D printing, and elaborate gaming systems, validating its popularity among both beginners and seasoned developers.

Setting Up and Troubleshooting the Arduino Mega with CH340

Setting up the Arduino Mega equipped with the CH340 USB-to-UART bridge requires several methodical steps to ensure a smooth start for your projects. Begin by securely connecting the Arduino Mega to your computer using a compatible USB cable. After physical connection, the next critical step involves installing the appropriate drivers necessary for the CH340 chip. Since this component is essential for communication between the Arduino board and your computer, proper driver installation is crucial. You can typically find the CH340 driver on the manufacturer’s website or reputable forums. Download the driver and follow the provided installation instructions based on your operating system.

Once the drivers have been successfully installed, open the Arduino IDE, which is essential for programming the board. In the IDE, navigate to the “Tools” menu where you will select the correct board type; select “Arduino Mega or Mega 2560.” It’s also necessary to confirm that the correct port is chosen, which corresponds to the COM port where your device is connected. After these settings are adjusted, your Arduino Mega CH340 is ready for programming.

However, users may encounter various issues during setup. One common problem is driver installation errors, where the device does not recognize the CH340 chip. In such cases, ensuring that you have downloaded the correct driver version for your specific operating system can resolve the problem. Connection issues might also arise if the USB cable is faulty or not adequately connected. Another frequent obstacle is programming unsuccessful attempts, often due to incorrect board settings in the IDE. Ensure that the selected board and port settings are accurate, and try uploading a simple sketch like the “Blink” example to test your setup. By following these guidelines and troubleshooting tips, you will be better equipped to set up and work with the Arduino Mega CH340 efficiently.
