Microbit Class Set Four-DOF Metal Robotic Arm Kit

Microbit Class Set Four-DOF Metal Robotic Arm Kit

The robotic arm kit Designed with Servo Driver for micro:bit, it can be used as a micro bit education project.

Designed with Micro:bit interface for direct plug-in use.

The Robotic Kit I2C interface control requires only 2 signal lines to drive servos.

The Arm Kit Supports up to 16 servo or PWM outputs, each with 12-bit resolution (4096 levels).

Robotic designed with 5V voltage regulator chip, outputting up to 3A current, can be powered by a battery via the VIN terminal.

The robot kit designed with standard servo interface, it compatibles with common servos model such as SG90, MG90S, and MG996R.

Reserved I2C control interface for easy connection to other control boards.

Comprehensive accompanying manuals (graphical examples/user manuals for micro:bit Bluetooth remote control, 2.4G wireless remote control, etc.)

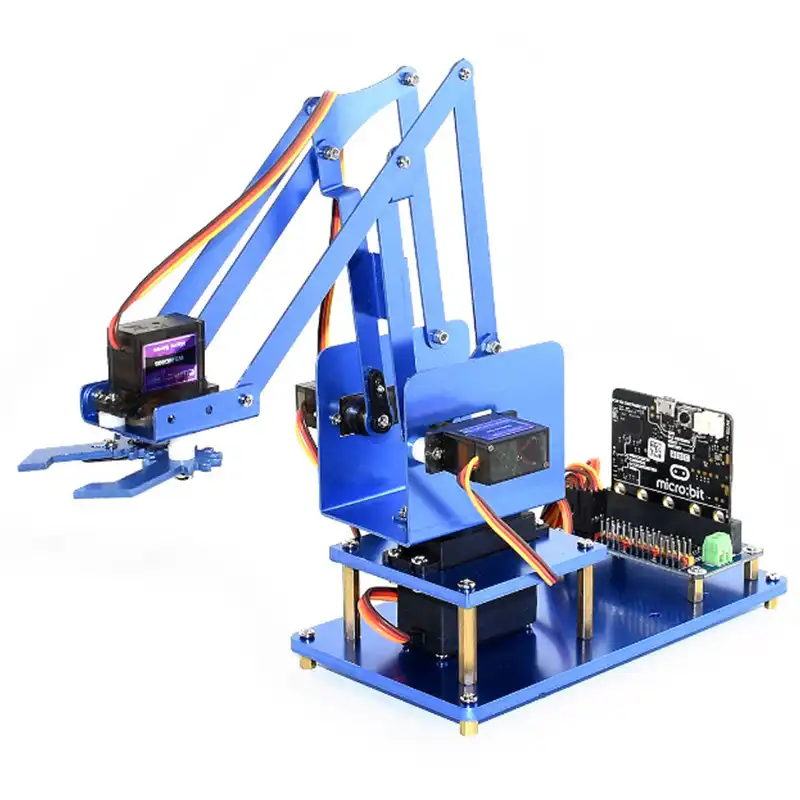

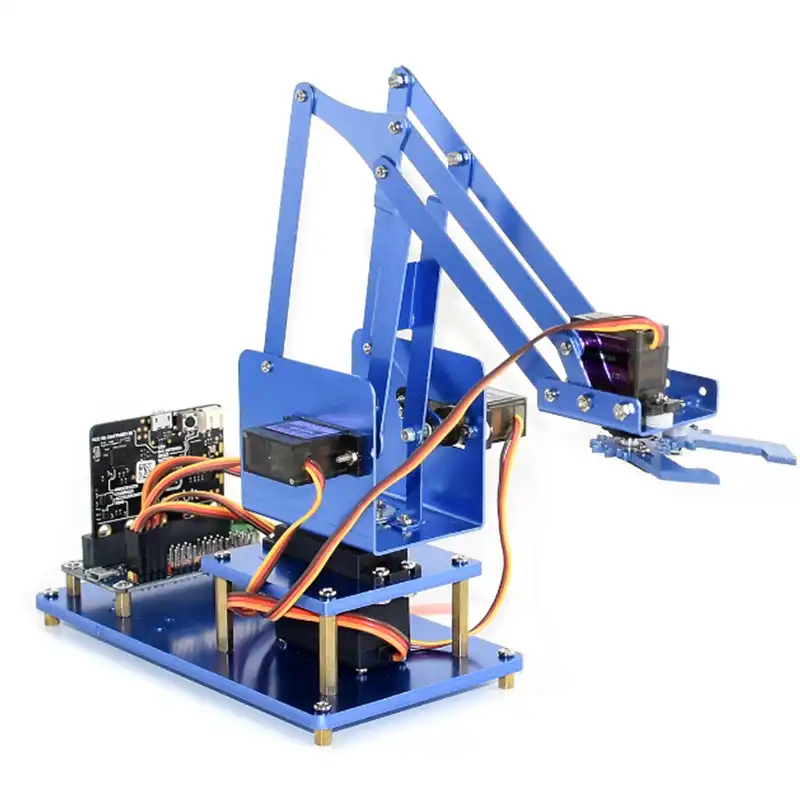

Robotic Arm Feature

This microbit class set designed with four degrees of freedom, robust base, alloy mechanical gripper.

All-aluminum alloy body, sandblasted and anodized surface, sturdy and durable.

Ingenious mechanical structure and hole design for flexible control and easy installation.

Equipped with four metal gear servos (1 MG996R and 3 MG90S), providing ample torque and smooth rotation.

How to order this micro bit kit?

As you may already noticed, there is a MOQ required. If you confirmed your order quantity is much more than MOQ online, welcome chat with us to get a quotation.
