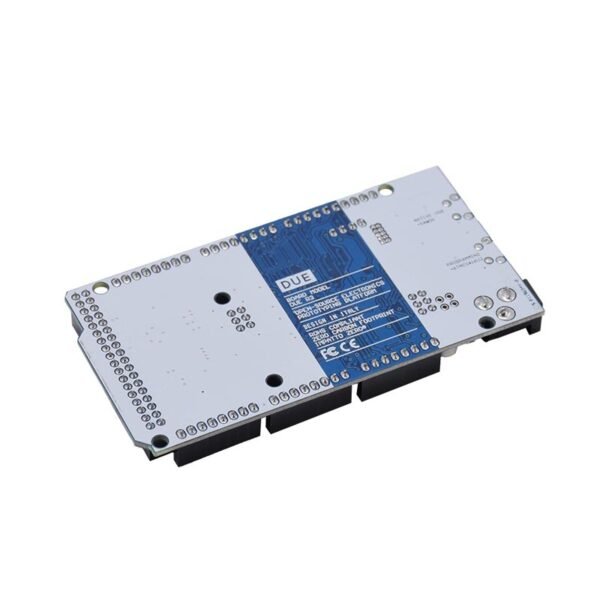

Open Source Due Development Board For Arduino R3

Overview of Arduino Due R3

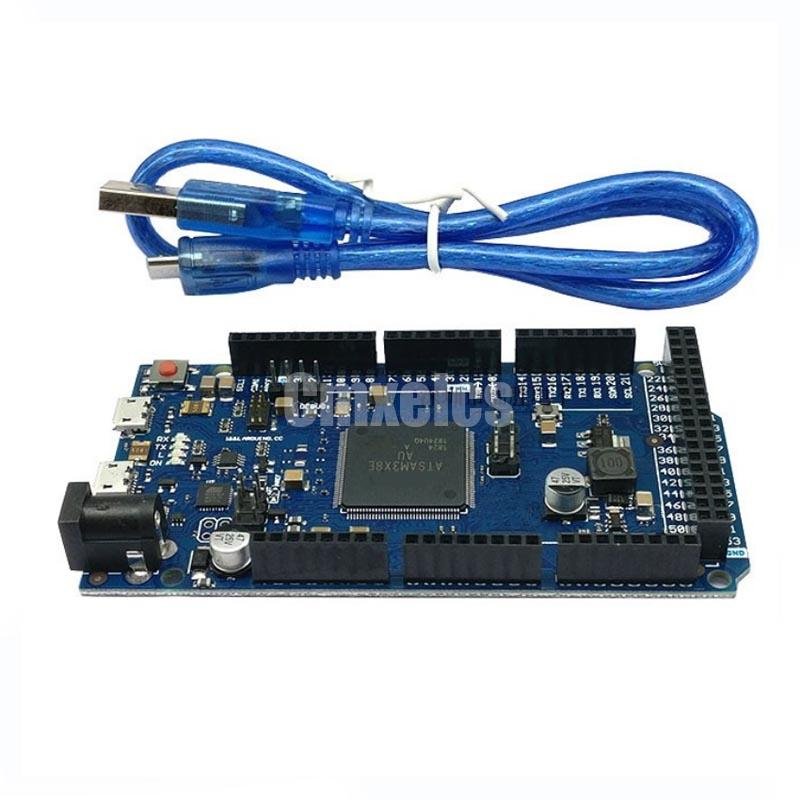

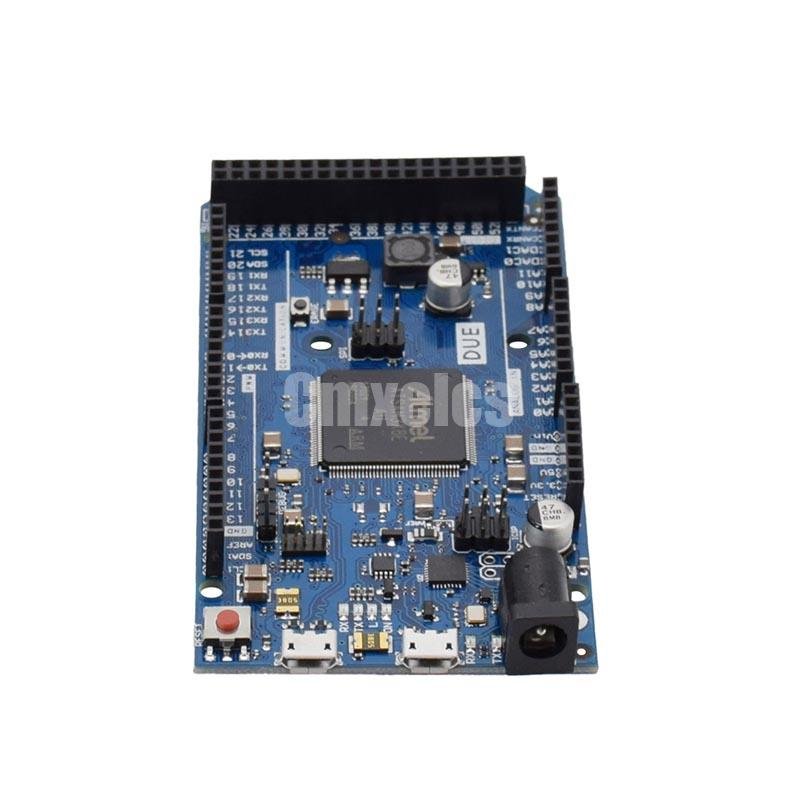

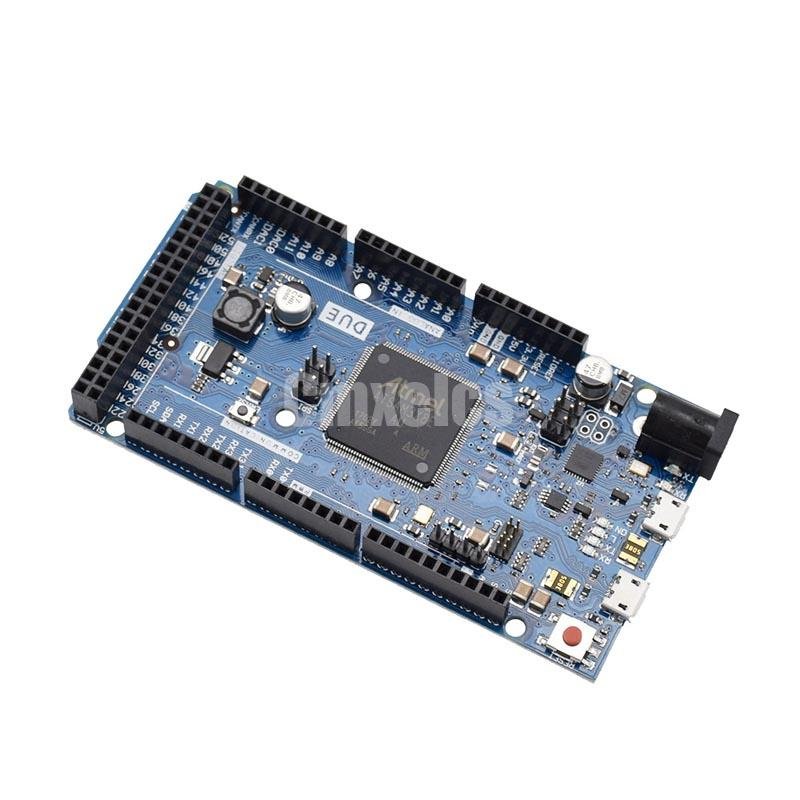

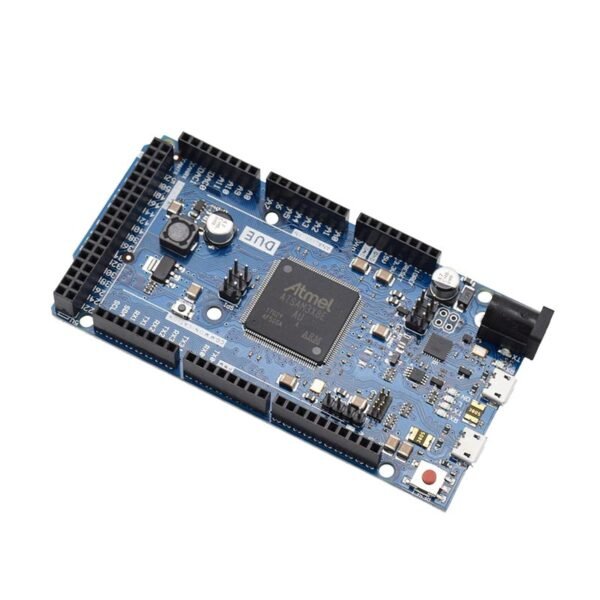

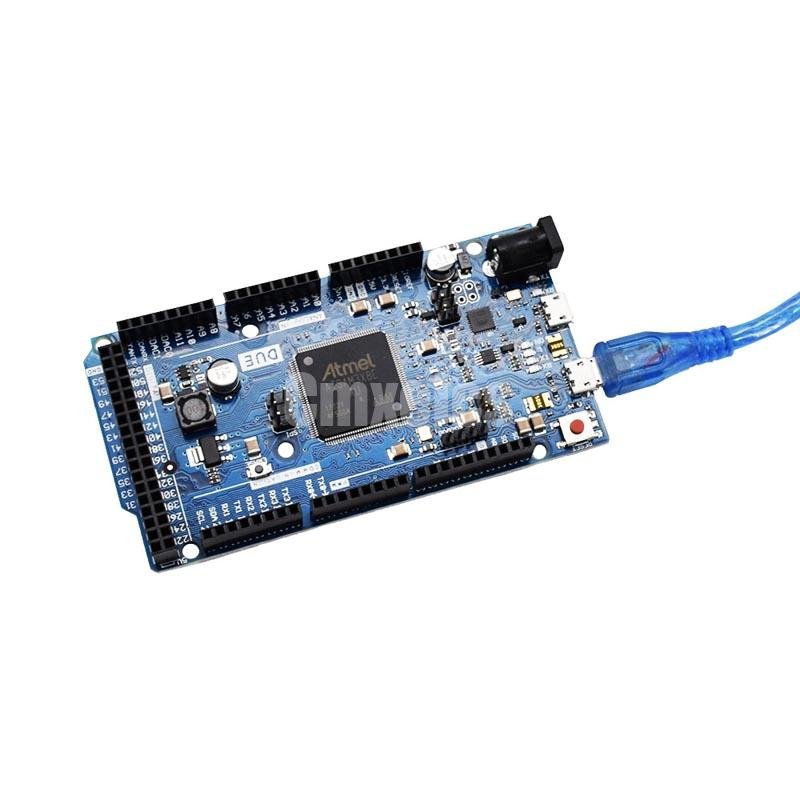

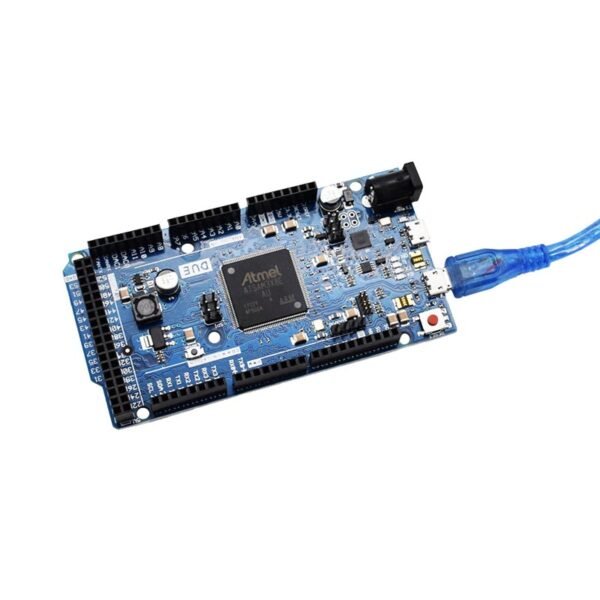

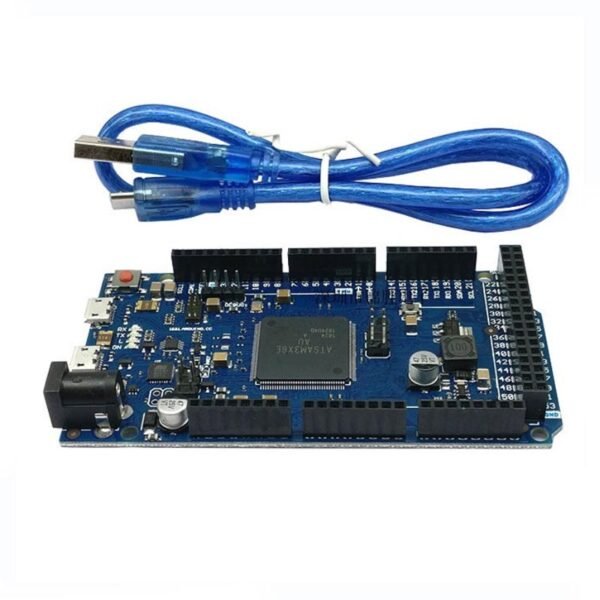

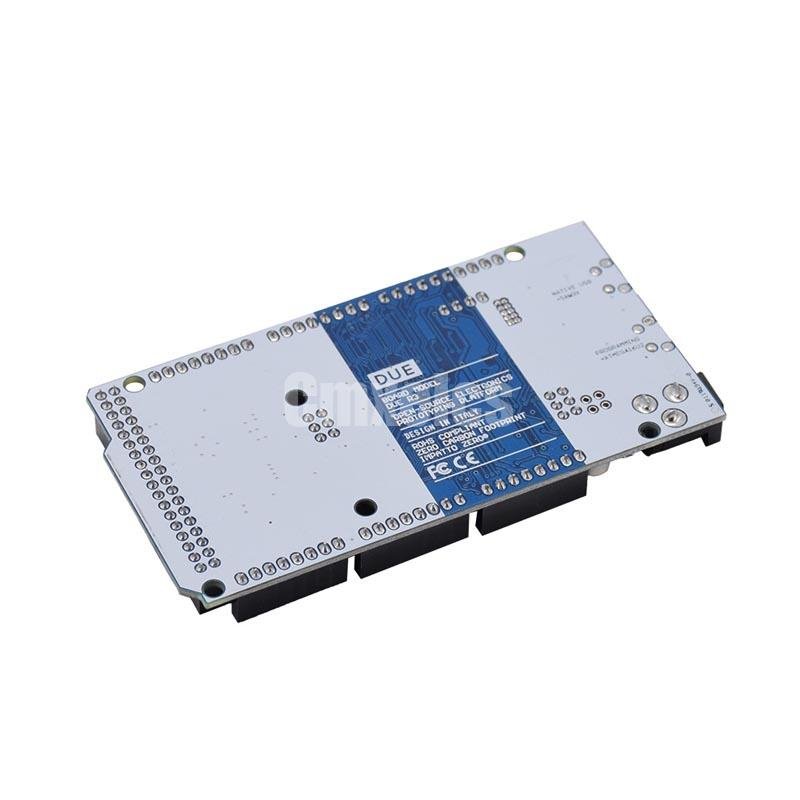

The Due Development Board is a powerful microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 processor, distinguished from many of its counterparts within the Arduino family by its 32-bit architecture. This advancement allows for enhanced computational capabilities, enabling the Due R3 to execute more complex operations while maintaining efficient performance. With a maximum clock speed of 84 MHz, developers can leverage this board in demanding applications, making it suitable for projects that necessitate rapid data processing and execution.

One of the prominent features of the Arduino Due R3 is its extensive input/output capabilities. The board is equipped with 54 digital input/output pins, allowing for significant flexibility in connecting various components and peripherals. Additionally, it includes 12 analog input pins, which provide the capacity to read a range of sensor signals and process them in real-time. This versatility, combined with the ability to handle multiple simultaneous connections, positions the Due R3 as an ideal choice for advanced projects requiring robust interaction with multiple sensors or devices.

Moreover, the Arduino Due R3 supports a variety of shields and accessories, offering further enhancements and expansion possibilities. It is compatible with many existing Arduino shields while also accommodating specialized peripherals designed for more intensive applications. This compatibility expands the board’s functionality, enabling developers to utilize their familiarity with the Arduino ecosystem while exploring the capabilities of the ARM Cortex-M3 microcontroller. Ultimately, the Arduino Due R3 stands out for its balanced combination of processing power and connectivity, making it an excellent option for those embarking on sophisticated projects in fields such as robotics, automation, and data acquisition.

Getting Started with Due Development Board

The Arduino Due R3 is a powerful microcontroller board, offering a host of advanced features suitable for various projects. To get started with the Arduino Due R3, several essential hardware components are necessary. Begin by ensuring you have a suitable USB cable for connecting the board to your computer, as well as a reliable power supply, if needed. This specific Arduino board operates at 3.3V logic levels, so it is crucial to avoid connecting it directly with 5V components to prevent damage.

Once you have the required hardware, the next step is the installation of the Arduino Integrated Development Environment (IDE). This software will be used to write and upload code, often referred to as “sketches,” to your Arduino Due R3. To install the Arduino IDE, visit the official Arduino website, download the correct version for your operating system, and follow the installation instructions provided on the site. During the installation, ensure that you select options specific to Arduino Due to ensure the IDE recognizes your board’s unique capabilities.

After installation, connect your Arduino Due R3 to your computer and launch the IDE. In the IDE, navigate to the “Tools” menu to select the Arduino Due board and the corresponding port it is connected to. A simple example project, such as blinking an LED, can help familiarize you with the IDE. This involves writing a short sketch and uploading it to the board. Understanding the pin mapping and utilizing built-in functionalities like programmable logic and advanced timers can enhance your projects significantly.

As you embark on this journey, some common setup issues may arise, such as installation errors or driver conflicts. Checking online forums and the Arduino community can provide solutions to these common problems, allowing you to troubleshoot effectively. By following these steps, you will be well-prepared to explore the various capabilities of the Arduino Due R3.

If you are interested with mass quantity,welcome contact us to talk details.
