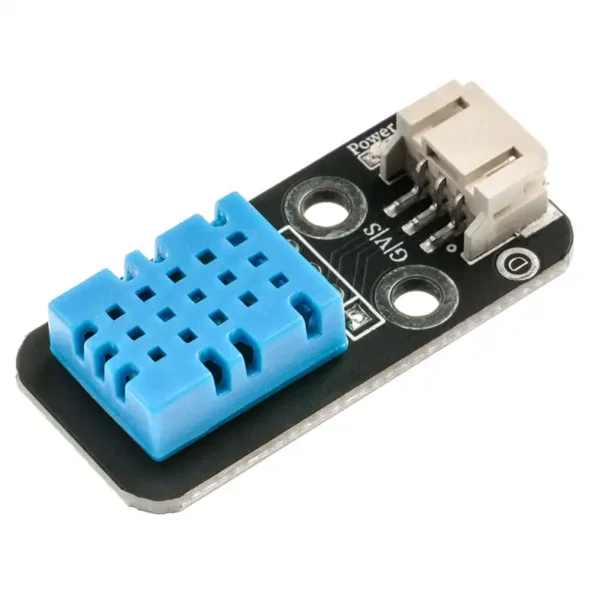

PH2.0 3Pin DHT11 Sensor Module

PH2.0 3Pin DHT11 Sensor Module

The DHT11 digital temperature-humidity sensor is a composite sensor with a calibrated digital signal output. It utilizes specialized digital data acquisition and humidity-temperature sensor technology to ensure high reliability and excellent long-term stability. The sensor consists of a resistive humidity element and an NTC temperature measurement element.

The DHT11 communicates with a microprocessor via a single bus. It requires only a single thread, transmitting 40 data points at a time. The data format is: 8-bit humidity integer + 8-bit humidity decimal + 8-bit temperature integer + 8-bit temperature decimal + 8-bit parity. The data transmission process is as follows: the master sends a start signal -> the DHT responds -> the DHT notifies the master that it is ready to receive signals -> the DHT sends its data -> the DHT signals an end -> the DHT internally retests the ambient temperature and humidity and records the next data point.

Specification of the sensor module:

Operating Voltage: 3.3V-5.5V
Connector Type: PH2.0 3P Terminal

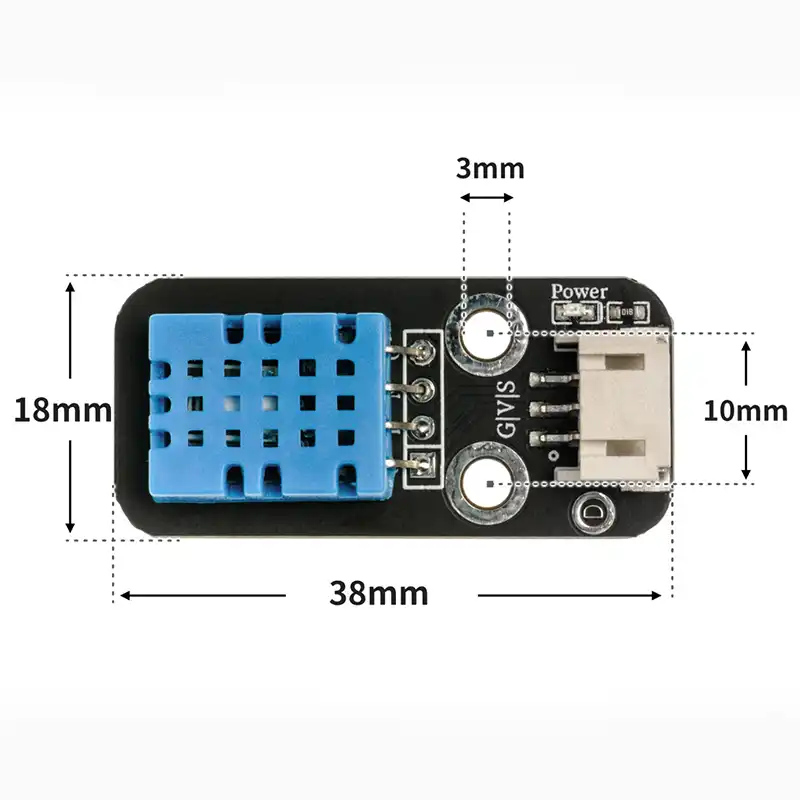

Mounting Hole Parameters: 3mm Diameter, 10mm Pitch
Module Dimensions: 30mm*18mm*7mm
Connector Description: G connects to the negative power supply, V connects to the positive power supply, S connects to the digital signal output pin

This sensor compatible with arduino, micro bit, esp32, stm32 dev board programming.

Packing List of DHT11:

ESD Package.
