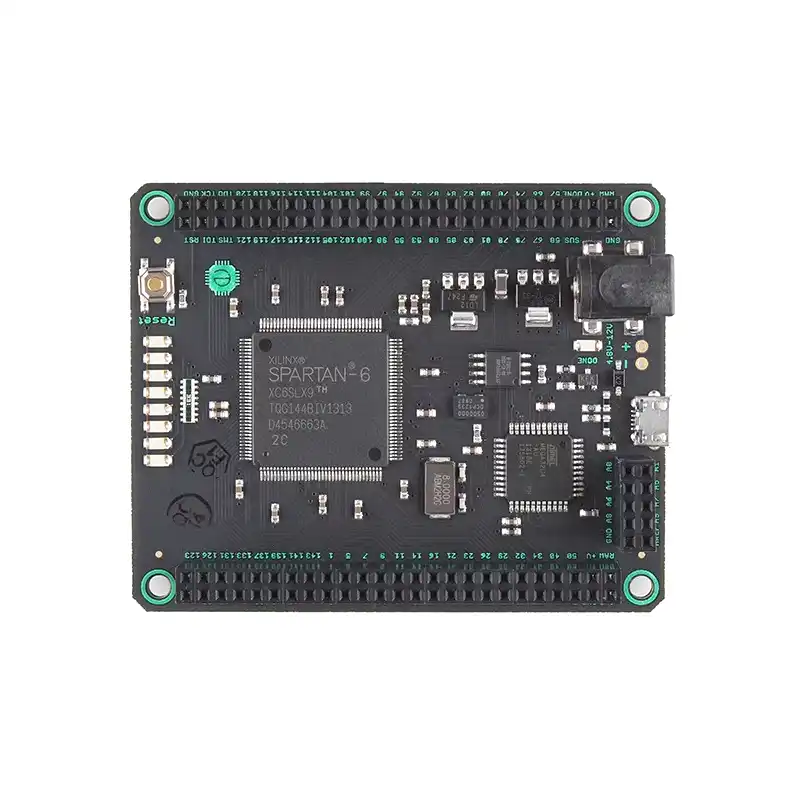

Chengsuchuang FPGA Development Board for Xilinx Spartan 6

Chengsuchuang FPGA Development Board for Xilinx Spartan 6

The fpga development board is made in China.Black pcb color.This board has processor is powerful. With ATmega32U4 mcu comes with a USB (DFU) bootloader, which will allow you to install future firmware upgrades without having to purchase a downloader. Once the board is powered up, the ATmega32U4 will flash the FPGA. After the FPGA is successfully configured, enter slave mode with the ATmega32U4. This allows your FPGA design to connect with the microcontroller easy to access serial ports and analog inputs.

Chipset:

Spartan6 LX9 and ATmega32U4

Specification:

Core Chip Model:Spartan 6 XC6SLX9 FPGA

84 digital IO pins

8 analog inputs

8 general purpose LEDs

1 LED to show that the FPGA is configured correctly

Onboard voltage regulation, can handle 4.8-12V

ATmega32U4 for configuring the FPGA, USB communication, reading analog pins

Onboard flash memory to store FPGA configuration files.

Packing list:

ESD Package.

Other type development board is also available.Know more about our company website,More quantity,contact us to talk,
