Cmxelcs STEM DIY Robot Kit for Engineering Students
The DIY robot kit is an upgraded version of the self-driving car, featuring added Bluetooth control via an Android smartphone.
The Bluetooth Multifunction Car is a microcontroller learning and application development system, carefully designed by the Keyi team. It is a four-wheel-drive car system based on the ATmega328P as its core, capable of line tracking, obstacle avoidance, and remote control functions. The kit includes a wide range of fun and engaging programs and supports expansion with external circuit modules to further enhance the car’s functionality.
The diy goal is to help users move away from dull theoretical learning when studying microcontrollers and instead gain practical system development skills through hands-on play and experimentation.
Specifications of the Robot Kit:
Gear motor reduction ratio: 1:48, driving voltage: 6V.
Motor control uses an L298N driver module, electrically isolated from the microcontroller.
Three sets of line-tracking modules for detecting black and white lines, offering higher accuracy; they can also be used for anti-fall (cliff detection) control.
Infrared remote communication module, forming a remote-control system for the smart car.
Bluetooth wireless communication module for short-range wireless remote control.
Equipped with economical and eco-friendly rechargeable batteries and a charger, ensuring reliable power for the car.

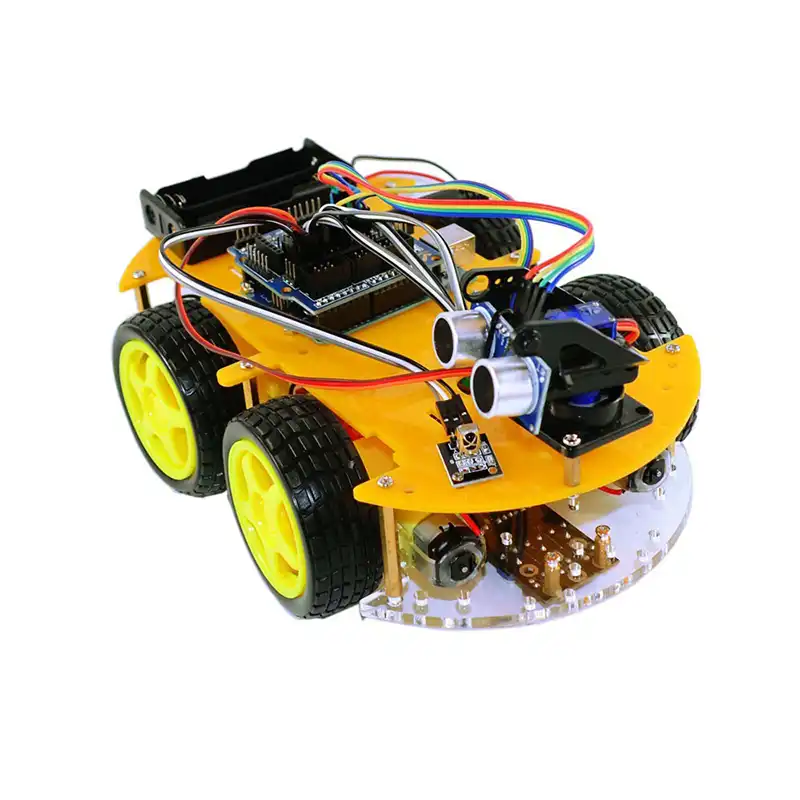

The DIY robot kit has an overall length of 23 cm and a width of 12 cm. It supports an external power supply of 7–12V and can be equipped with multiple sensor modules to realize various functions according to your imagination.
Experimental Course Overview of the Robotic Kit
Application of the L298N motor driver board
Line-tracking smart car
Ultrasonic obstacle-avoidance smart car
Infrared remote-controlled smart car
Bluetooth remote-controlled programmable smart car
Four-in-one multifunction program (line tracking, obstacle avoidance, infrared remote control, Bluetooth remote control)

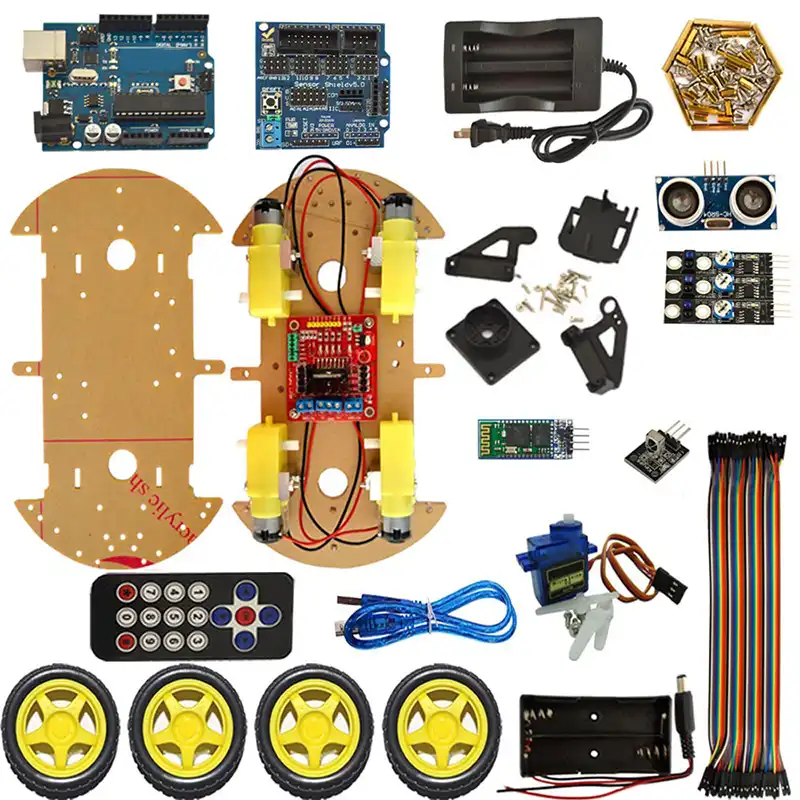

Packing List of this DIY Robot Kit:
Gear motors ×4
High-quality wheels ×4
Motor mounting brackets ×4
100 × 213 × 5 mm acrylic plate ×1
100 × 213 × 5 mm acrylic plate ×1
L298N motor driver board ×1
UNO328 control board for arduino ×1
Sensor expansion board V5 ×1
Pan-tilt bracket ×1
Servo motor ×1
Ultrasonic module ×1
Line-tracking modules (3 sets)
Infrared receiving sensor ×1
Microcontroller remote controller ×1
18650 battery holder ×1
18650 battery charger ×1
Bluetooth module ×1
Dupont wires ×30
0.5 m USB cable ×1
Brass standoffs: 35 mm ×6, 20 mm ×3, 6 mm ×6
3 mm screws and nuts (assorted quantities)
If you interested with more quantity of this DIY robot kit, inquire us to get a quotation online via whatsapp.
