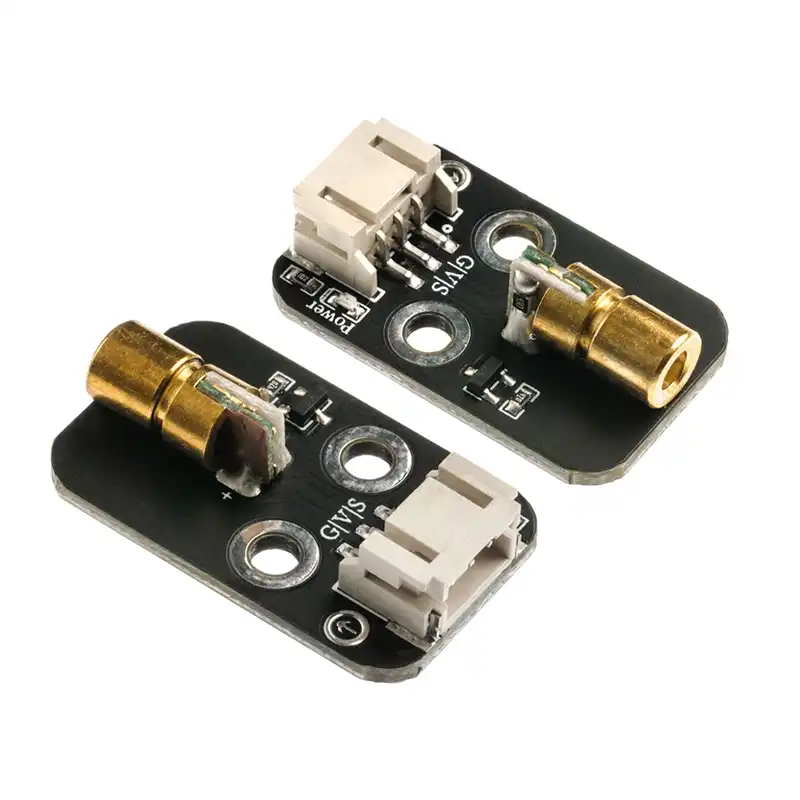

PH2.0 Laser Module Factory
6.0 laser module, laser head diameter is 0.6 mm, with positive and negative terminals, operating voltage 3.3V–5V. A faint red line can only be seen under conditions such as fog or other media; under normal conditions, only a red dot is visible. The housing is made of copper material.
It is mainly used in laser toys, light-emitting gyroscopes, various levels, grounding detectors, etc.
Special attention: do not point it directly at the human eyes.
Specification of the Laser:
Operating voltage: 3.3V–5.5V
Interface type: PH2.0 3P connector
Mounting hole specification: 3 mm diameter holes, 10 mm spacing
Module dimensions: 30 mm × 18 mm × 8 mm
Interface description: G connects to power negative (GND), V connects to power positive, S is the digital signal output pin
What’s the module order MOQ?
Minimum order quantity is 100pcs usually, however, if you also interested with other electronic parts, they are not required specified quantity. Contact us get a catalog to pick up more electronic module products with factory price.
