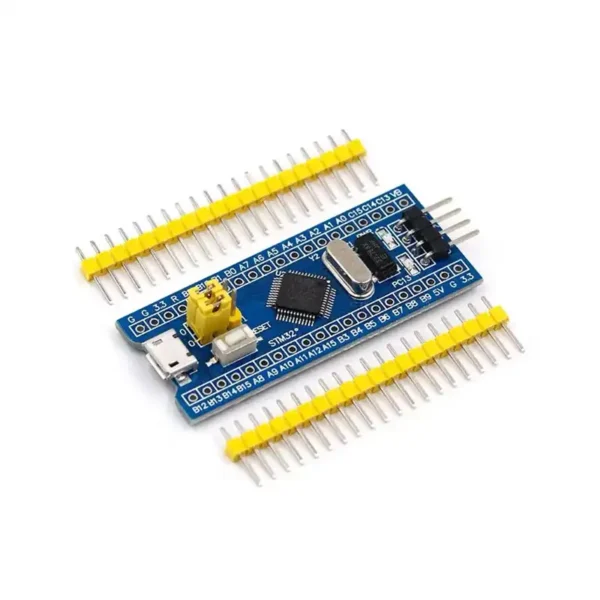

Specification of STM32F103C8T6 Board
1. Maximum operating frequency of 72MHz, up to 1.25DMips/MHz with zero-wait-cycle memory access
2. Single-cycle multiplication and hardware division
3. 64K Flash program memory
4. 20K bytes SRAM
5. 2.0~3.6V power supply and I/O pins
6. Power-on/Power-off Reset (POR/PDR), Programmable Voltage Regulator (PVD)
7. 4~16MHz crystal oscillator
8. Embedded factory-calibrated 8MHz RC oscillator
9. Embedded calibrated 40kHz RC oscillator
10. PLL for generating CPU clock
11. 32kHz RTC oscillator with calibration
12. Sleep, stop, and standby modes
13. VBAT powering the RTC and backup registers
14. Two 12-bit analog-to-digital converters with 1µs conversion time (up to 16 input channels)
15. DMA
16. 37 fast I/O ports, all I/O ports can image 16 external interrupts, almost all ports are 5V tolerant
17. Three general-purpose timers, one advanced timer
18. Two SPIs (SPI1, SPI2)
19. Two I2Cs (I2C1, I2C2)
20. Three USARTs (USART1, USART2, USART3)
21. One USB 2.0 full-speed port
22. One USB 2.0B active port
How to order this stm32 f103c8t6 development board?
We provide different type electronic components and modules, they not only compatible with STM32 but also support other development tool like Arduino, Raspberry Pi, Micro Bit, Microchip etc. If you have a sourcing list, welcome Contact us to get a quotation.
