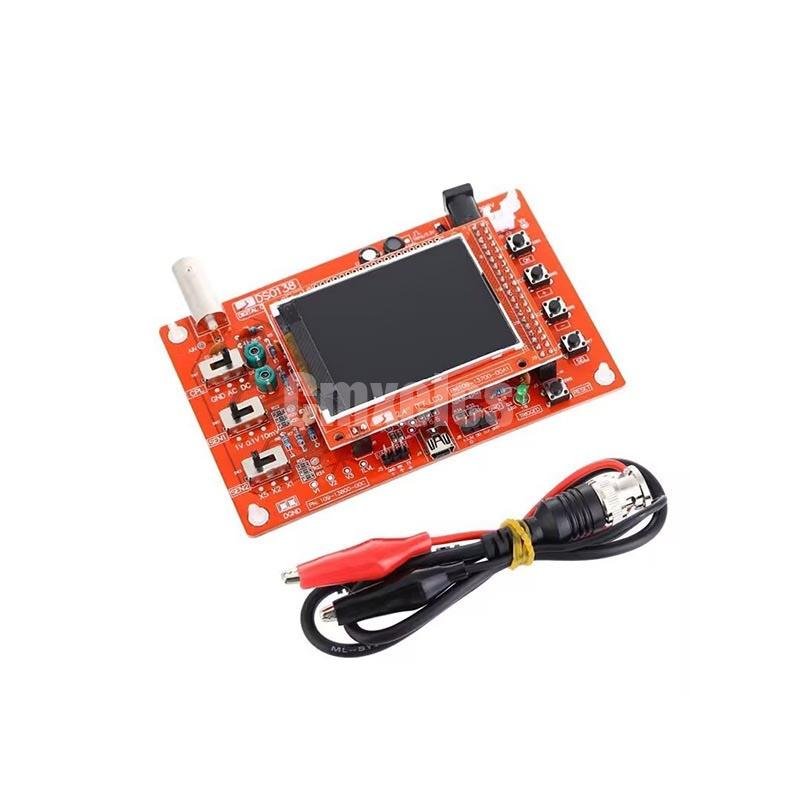

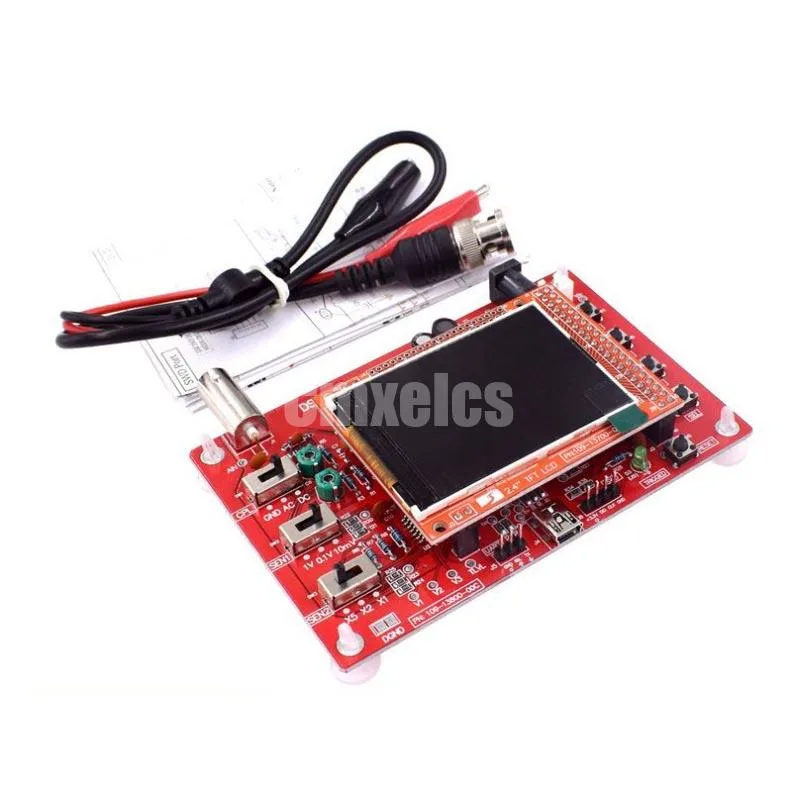

Cmxelcs DSO138 digital oscilloscope kits

Cmxelcs DSO138 digital oscilloscope kits

DSO138 digital oscilloscope is a enonomic digital oscilloscope,especially suit for different DIY electronics programming.

Features:

Yes Real-time sampling rate: 1Msps

Precision: 12Bit

Sampling buffer depth: 1024 bytes

Analog bandwidth: 0 – 200KHz

Vertical sensitivity: 10mV/Div – 5V/Div (progressive in 1-2-5 mode)

Vertical displacement is adjustable with indication

Input impedance: 1MΩ

Yes High input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)

Coupling mode includes DC/AC/GND

Horizontal time base range: 10μs/Div – 50s/Div (progressive in 1-2-5 mode)

With automatic, normal and single trigger modes, it is convenient to capture instantaneous waveforms

Rising or falling edge trigger is available

Trigger level position is adjustable with indication

The waveform before the trigger can be observed (negative delay)

The waveform display can be frozen at any time (HOLD function)

Built-in 1KHz /3.3V square wave test signal source



Shipping List:

ESD Packing,cable included.
