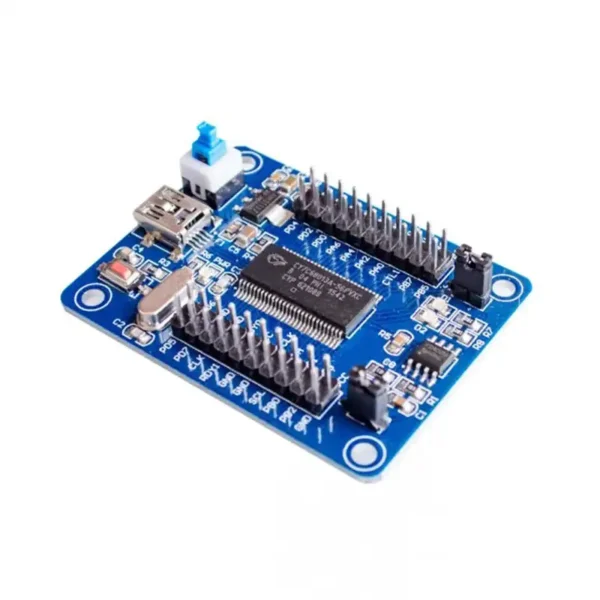

CY7C68013A Logic Analyzer Dev Board

Introduction of CY7C68013A Logic Analyzer Dev Board

1.  The Development Board designed based on CY7C68013A-56 mcu chip : a low-power version, enhanced 51-core, 16KB program data area, 48MHz clock speed, 480Mbps high-speed transmission protocol standard, compliant with USB 2.0 specifications, and backward compatible with USB 1.1.

2. Firmware EEPROM: A complete in-system programming solution, allowing direct download of firmware via USB cable. The board provides a large 16KB (24LC128) EEPROM for storing VID/PID and USB firmware, meeting the program space requirements of the CY7C68013A.

3. All GPIOs are brought out via 2.54mm standard headers, facilitating user-defined expansion designs.

4. With the corresponding firmware, this core board can function as a logic analyzer.

5. Provides schematics and related source code in PDF format.

MOQ of this Cypress development board

As you seen online this dev board MOQ is 100pcs, however it is not fixed, we are flexible to accept lower order for 80 or 50pcs if something else will be purchased together. Therefore, welcome drop us to get a quotation if you have a sourcing list, better to send with excel list with each description and picture, then we can get back to you the quotation at earliest. Know more about our company business here.

Packing List:

1 x ESD Packing Develoment Board
