Mini Development Board for Arduino Nano V3.0

Introduction to Mini Development Board Based on Arduino Nano CH340

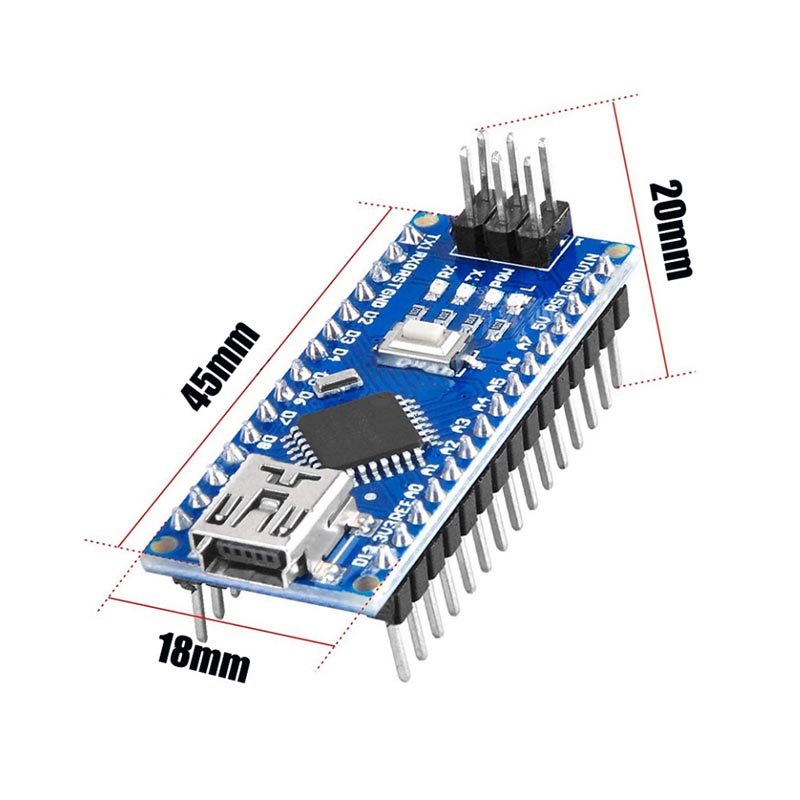

The Mini development board is a highly versatile microcontroller board that has gained significant popularity among makers and electronics enthusiasts. Its compact design, measuring just 45mm x 18mm, makes it particularly suitable for projects where space is at a premium. Powered by the ATmega328P microcontroller, the Nano CH340 supports various applications, from basic prototyping to complex automation tasks, thereby catering to a wide range of user needs.

One of the standout features of the Mini development board is the CH340 USB-to-serial converter. This chip facilitates seamless communication between the microcontroller and a computer, allowing users to easily upload sketches and monitor serial data. Compared to its predecessors, which often utilized the FTDI chip, the CH340 offers a more cost-effective solution without compromising performance, making it a preferred choice for many hobbyists and professionals alike.

In terms of pin configuration, the Mini development board boasts 30 digital input/output pins, of which six can be utilized as PWM outputs. Additionally, it features eight analog inputs, enabling robust interfacing with various sensors and modules, expanding its potential applications. The board supports a voltage of 5V, with a current limit of 40mA per I/O pin, ensuring it can safely power small external devices.

While the Arduino Nano CH340 shares many features with other Arduino boards, it stands out due to its smaller form factor and enhanced ease of use, especially for beginners. The onboard USB connector simplifies connectivity, allowing users to start their projects without the need for additional shields or modules. Whether you are an experienced engineer or a newcomer to the world of electronics, the Arduino Nano CH340 offers a perfect gateway into innovative project development.

Applications and Projects Using Mini Development Board for Arduino Nano CH340

The Arduino Nano CH340 is a compact yet powerful microcontroller board, making it an ideal choice for a wide array of projects. Its versatility and ease of use allow both beginners and experienced programmers to create innovative solutions across multiple domains. One common application is in robotics, where the Nano CH340 can be utilized to control motors and sensors, enabling the development of robots that can navigate environments autonomously.

For those interested in home automation, the Arduino Nano CH340 serves as a reliable central unit that can manage various household devices. By integrating this board with smart sensors and relays, users can create systems that automate lighting, climate controls, and security measures. Projects can range from simple automated lighting systems to sophisticated home monitoring setups, showcasing the broad capabilities of the Nano CH340.

In addition to robotics and home automation, sensor interfacing is another significant application area. The Nano CH340 can easily connect with various sensors, such as temperature, humidity, and distance sensors, allowing for the collection and processing of real-time data. This ability opens up numerous possibilities for environmental monitoring and data logging projects, which can be valuable in both personal and professional contexts.

When delving into projects using the Arduino IDE, it is essential to familiarize oneself with the platform’s libraries and coding practices. Beginner-friendly tutorials can guide users through basic interfacing and setup, while advanced resources can help tackle more complex challenges. Ensuring proper communication between the Nano CH340 and other components requires attention to detail, particularly in wiring and coding. By exploring these applications and project ideas, enthusiasts can truly unlock the potential of the Arduino Nano CH340 in their electronic endeavors.
