Chengsuchuang nodemcu esp8266 wifi development board with 0.96 inch oled display module

Chengsuchuang nodemcu esp8266 wifi development board with 0.96 inch oled display module

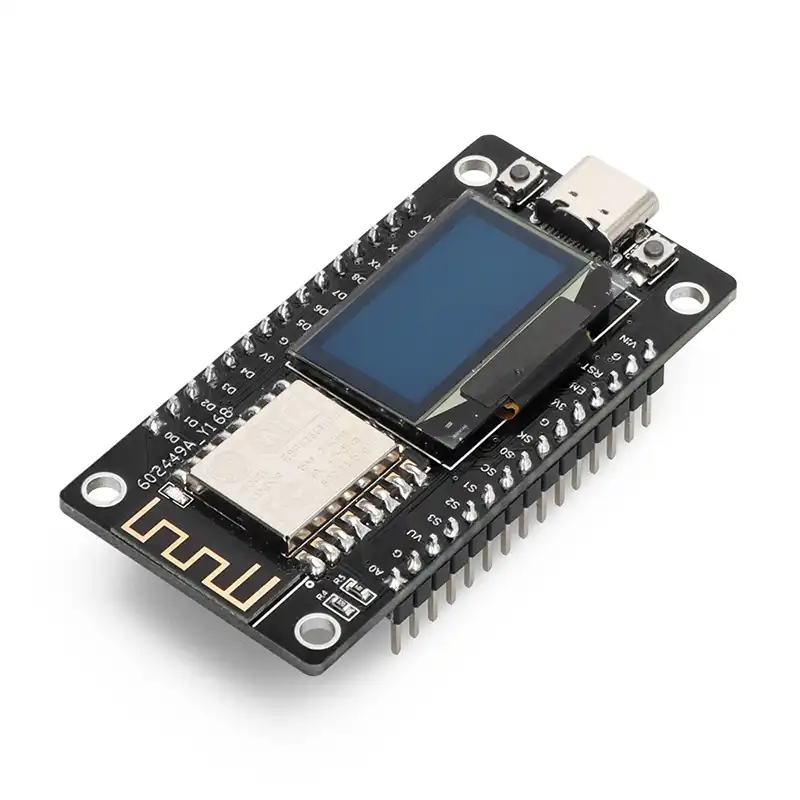

The NodeMCU ESP8266 Development Board designed with 0.96 inch OLED Display,CH-340 USB Driver and ESP-12E WiFi Module.The communication output interface is Micro USB used for Arduino/Micropython ESP8266.

ESP8266 0.96 inch OLED Control Board

The ESP8266 Node MCU board integrated all the features of a traditional ESP8266 module with the same size and peripheral IO ports, and can be seamlessly integrated with a 0.96 inch OLED display.

The display has a high-resolution 128X64 with SSD-1306 driver and is compatible with I2C, SPI interfaces. In addition, it uses a Type-C USB data cable connection. Say goodbye to the messy setup with the ESP8266 NodeMCU board.

Before use,make sure you already installed the CH340 driver, search the keyword “CH340 driver” on Google or Bing, and install it according to the notificatoin. Win10 operating system is recommended.You can also directly view here to download.

The ESP8266 NodeMCU board is equipped with an ESP-12E module, which contains a Tensllica Xtensa 32-bit LX06 RISC microprocessor that powers the ESP8266 chip. The processor supports real-time operating systems and the clock frequency can be adjusted between 80MHZ and 160MHZ. It also contain 128KB of RAM and 4MB of flash memory, providing ample storage space for data and programs. With its high processing power, built-in WI-FI and deep sleep operation functions, it is an excellent choice for IOT projects.

Packing list:

1*ESP8266 0.96 OLED board (welded)
