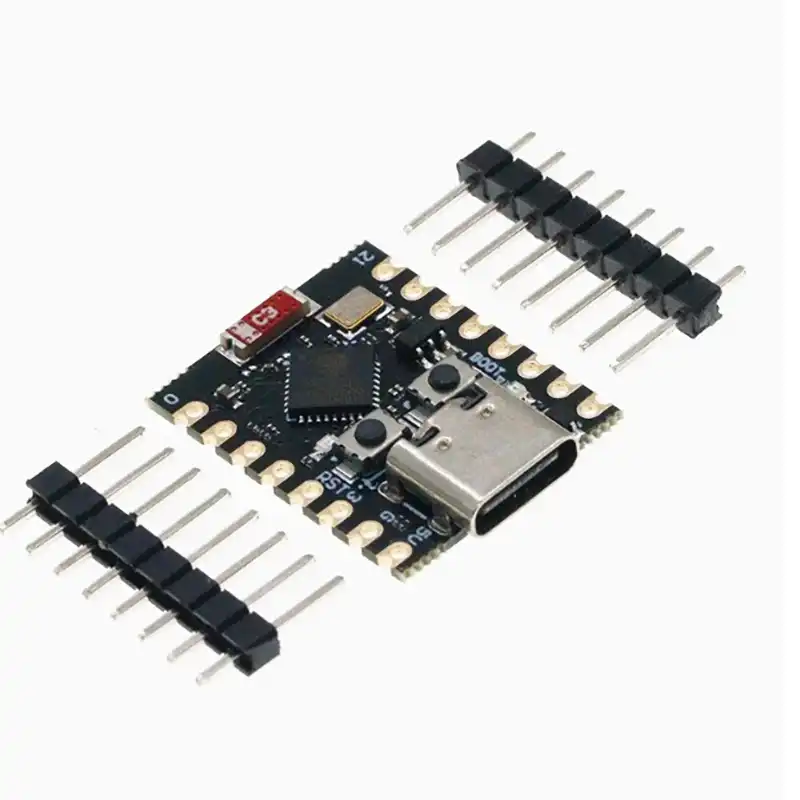

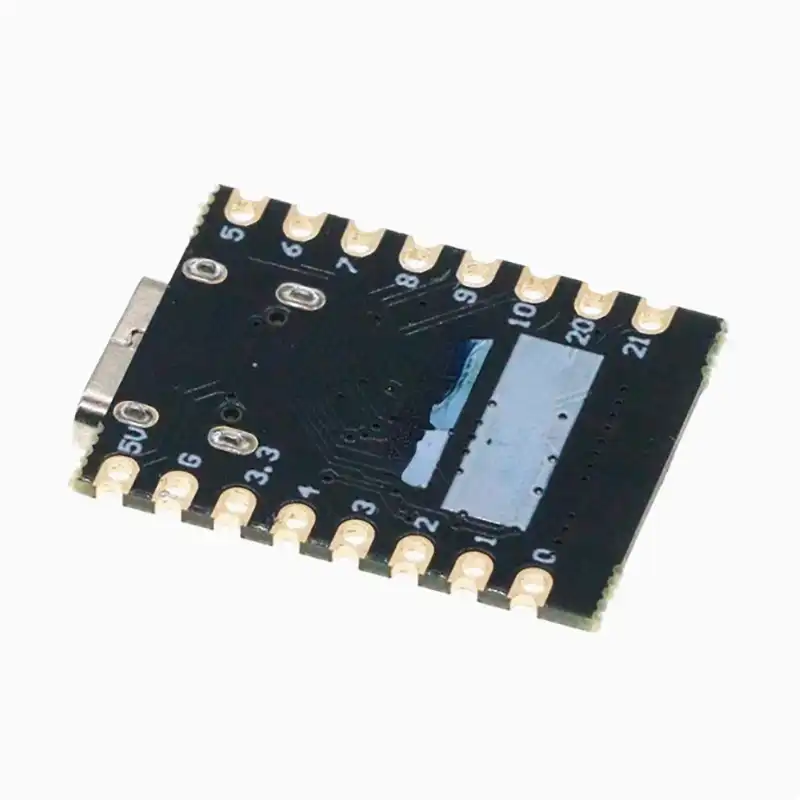

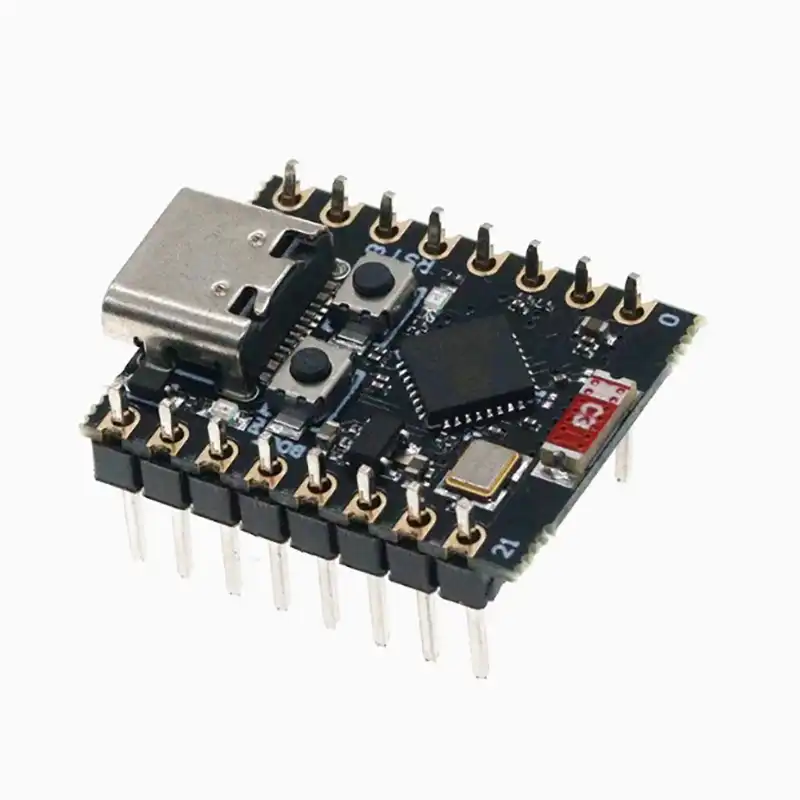

ESP-32C3 SuperMini – Powerful, Ultra-Compact IoT Development Board
The ESP32-C3 SuperMini is a mini IoT development board built around Espressif’s ESP32-C3 Wi-Fi/Bluetooth dual-mode chip. Powered by a 32-bit RISC-V CPU with an integrated FPU for 32-bit single-precision computation, it delivers robust processing performance in an impressively small footprint. With outstanding RF capabilities, it supports IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE). The board also includes an external antenna to further strengthen wireless signal performance.
Designed with a compact, refined form factor and a single-sided SMD layout, the ESP32C3 SuperMini offers rich connectivity options: 11 digital I/O pins capable of PWM output, 4 ADC analog input pins, and support for UART, I2C, and SPI serial interfaces. It also features an onboard reset button and a bootloader mode button for easy development.
Combining powerful performance, low power consumption, and excellent value, the ESP32C3 SuperMini is ideal for low-power IoT devices, wireless wearables, and compact smart applications.
Product Specifications
High-Performance CPU: ESP32-C3, 32-bit RISC-V single-core processor, up to 160 MHz
Wi-Fi: 802.11 b/g/n, 2.4 GHz; supports Station, SoftAP, SoftAP+Station, and Promiscuous modes
Bluetooth: Bluetooth 5.0 (LE)
Ultra-Low Power: Deep-sleep current approx. 43 μA
Onboard Resources: 400 KB SRAM, 384 KB ROM, integrated 4 MB Flash
Chip Model: ESP32C3FN4
Ultra-Compact Size: Thumb-sized (22.5 × 18 mm), ideal for wearables and miniature projects
Robust Security: Hardware accelerators supporting AES-128/256, Hash, RSA, HMAC, digital signature, and secure boot
Rich Interfaces: 1× I2C, 1× SPI, 2× UART, 11× GPIO (PWM-capable), 4× ADC
Single-sided SMD layout
Onboard LED: Blue LED on GPIO8
