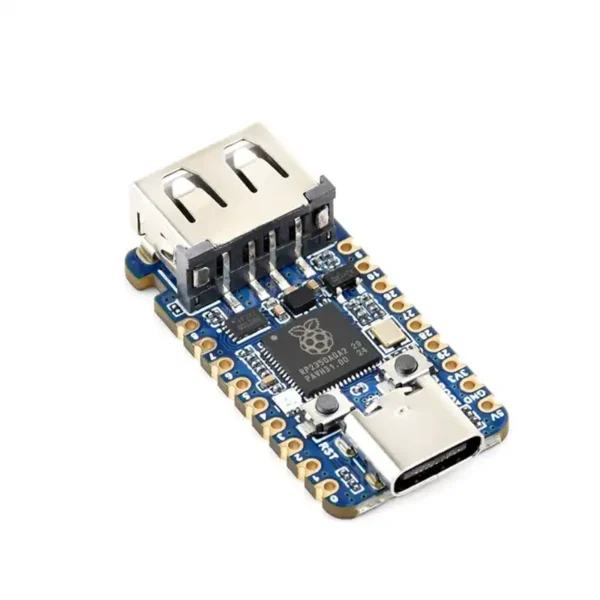

Raspberry Pi Pico Microcontroller RP2350A Dev Board

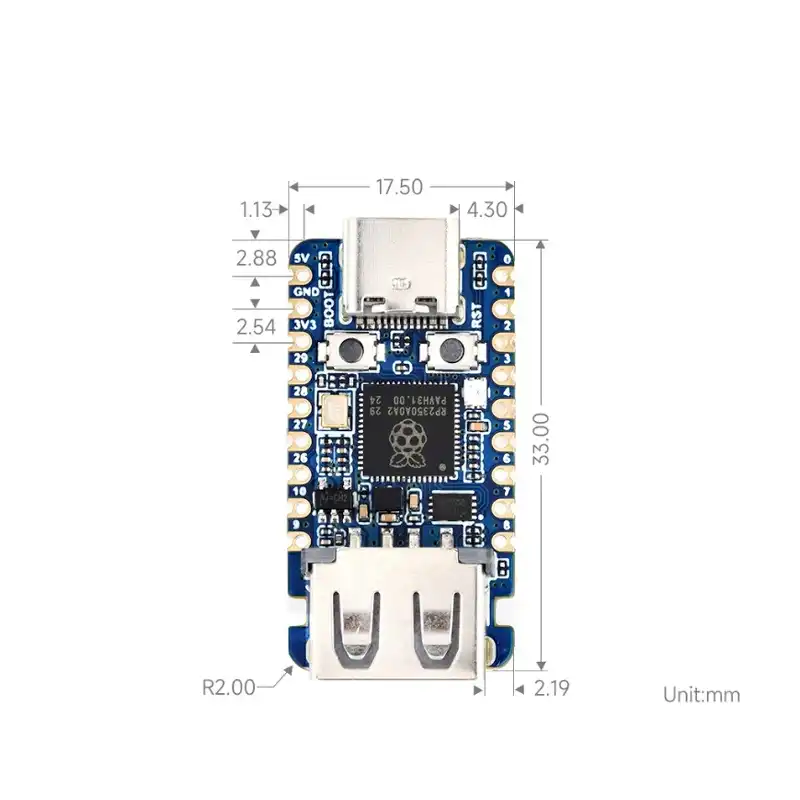

The development board is based on the Raspberry Pi Microcontroller RP2350A, with an onboard USB interface.Half-hole (castellated) design for direct soldering onto custom-designed PCBs.
Key Features
- Powered by the Raspberry Pi RP2350 microcontroller, designed in-house by Raspberry Pi.
- Dual-core, dual-architecture design featuring dual ARM Cortex-M33 processors and dual Hazard3 RISC-V processors, with a flexible clock speed of up to 150 MHz.
- Infineon CYW43439 wireless chip supporting Wi-Fi 4 (802.11n) and Bluetooth 5.2.
- Built-in 520 KB SRAM and 4 MB onboard Flash memory.
- Castellated edge pads for direct soldering onto custom PCBs and user-designed boards.
- Pico 2 WH: Uses pre-soldered headers instead of castellated pads and connects to other boards via the headers.
- USB 1.1 host and device support.
- Supports low-power sleep and dormant modes.
- USB mass-storage support for drag-and-drop program loading.

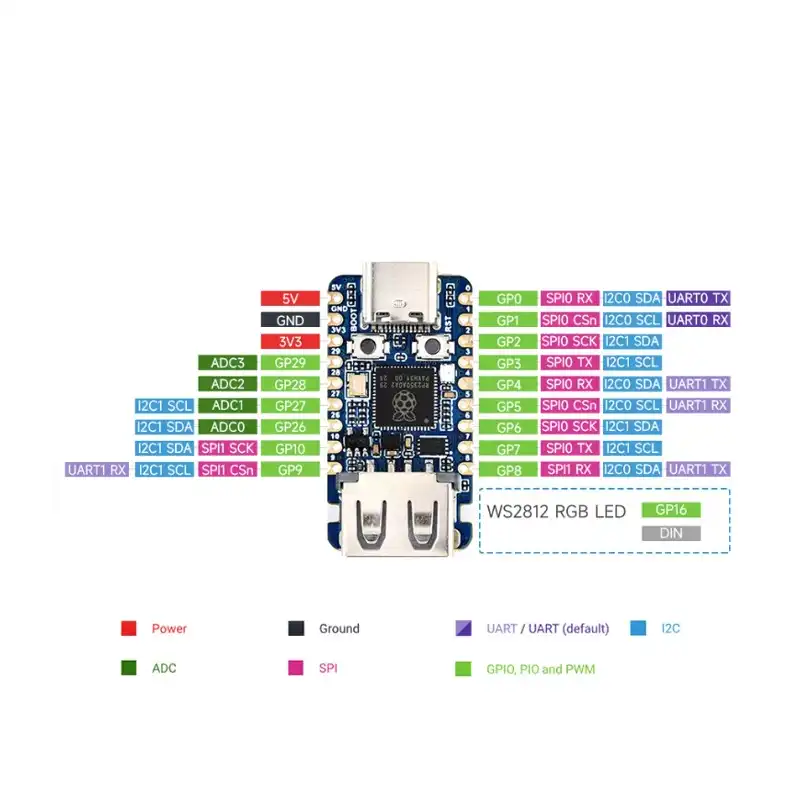

- Up to 26 multifunction GPIO pins.
- 2 × SPI, 2 × I²C, 2 × UART, 3 × 12-bit ADC, and 16 × controllable PWM channels.
- Built-in temperature sensor.
- 12 programmable I/O (PIO) state machines for custom peripheral support.
